Buy ROLAND VersaStudio BN-20 Desktop Printer/Cutter is 100% safe,Because purchase products at Quantum Tronic provide a 100% money back guarantee.
Location Quantum Tronic : Jl. Arief Rahman Hakim no.59 Medan.To purchase online visit the website : www.quantumtronic.com
Price : USD 2850 / Pcs
Min Order : 1 – 5 Pcs
Lead Time :3-7 Days
Port : CIF / Kualanamu International Airport
Terms : Bank Transfer, Wise, Western union, Moneygram & WorldRemit
Shipment : FedEx, DHL, UPS
Product : Ori and Ready in stock

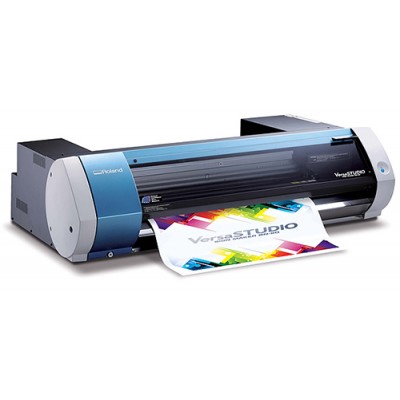

Model VersaStudio BN-20
Printing method / Cutting method Piezoelectric inkjet / Grit roller feed
Acceptable media Width 5.9 to 20.3 in. (150 to 515 mm)
Thickness Printing: Maximum 39 mil (1.0 mm) with liner
Cutting: Maximum 16 mil (.4 mm) with liner
Roll Weight Maximum 13.2 lbs (6 kg)
Roll Outer Diamater Maximum 5.9 in (150 mm)
Core Diamater 2 in (50.8 mm)or 3 in (76.2 mm) cores
Printing/cutting width1 Maximum 18.9 in (480 mm)
Ink cartridges Type
Ink Cartridges Type & Capacity Roland ECO-SOL MAX or FPG Aqueous, 220 ml only
Colors 5 Color – CMYK+Mt (Cyan, Magenta, Yellow, Black and Metallic Silver) or CMYK+Wh (Cyan, Magenta, Yellow, Black, and White)
4 Color – CMMYK (Cyan, Magenta, Yellow, Black)
Printing resolution Max 1440 dpi
Cutting Blade Type Roland CAMM-1 series cutter blade
Blade Offset Fixed at 0.250 mm
Cutting speed 0.4 (10 mm/s) to 5.9 in/s (150 mm/s)
Blade force 30 to 300gf
Software resolution (when cutting) 0.000984 in/step (0.025 mm/step)
Distance accuracy (when printing)2,3 Error of less than ± 0.3 % of distance traveled, or ± 0.3mm (0.012 in), whichever is greater.
Distance accuracy (when cutting)2,4 Error of less than ± 0.4 % of distance traveled, or ± 0.3mm (0.012 in), whichever is greater.
Repetition accuracy (When cutting)2,5 ±0.004 in (± 0.1mm) or less
Alignment accuracy for printing and cutting2,6 ±0.020 in (± 0.5mm) or less
Alignment accuracy for printing and cutting when reloading media2,7 Error of less than ± 0.5% of distance traveled, or ± 0.012 in (3mm), whichever is greater
Print Heater Temperature8 Fixed at 95o F (35oC)
Connectivity USB 2.0
Power-saving function Automatic sleep feature / AC 100 to 240V ± 10%, 1.5 A, 50/60 Hz
Power Consumption During Operation Approx. 90 W
Sleep Mode Approx. 5.5 W
Acoustic Noise Level During Operation 62 dB (A) or less
During Standby 42 dB (A) or less
Dimensions/Weight 39.2″ W x 23″ D x 11.5″ H (995 W x 585 D x 291 H mm), 79.4 lbs (35 kg)
Operating Conditions Power on Temperature: 68o – 90o F (20 to 32o C), humidity: 35 – 80% RH (non condensing)
Power off Temperature: 41o – 104o F (5 to 40o C), humidity: 20 – 80% RH (non condensing)
Included Items Power cord, USB cable, blade, blade holder, Rolandsoftware Package9, Software RIP (VersaWorks), User’s Manual, etc
*1 The length of printing or cutting is subject to the limitations of the program.
*2 Using Roland specified media, loaded correctly, temperature: 25°C (77°F), humidity: 50 %RH, all pinch rollers are used, 25 mm or more for both right and left margins and 35 mm or more front margin, excluding expansion or contraction of the emdia, and all correction and adjustment functions of this machine have been made properly.
*3 Using Roland specified media, print travel of 1m.
*4 Using Roland specified media, cut travel of 1m.
*5 Range for assured repetition accuracy: Length 1,000 mm.
*6 Provided that media length is under 1,000 mm. Excluding possible shift caused by expansion/contraction of the media and/or by reloading the media.
*7 Using Roland specified media, data size: 1,000 mm in the media-feed direction, 480 mm in the carriage-movement direction. No lamination. Automatic detection of crop marks at 4 points when media is reloaded. Excludes the effects of skewed movement and of expansion and contraction of the media.
*8 Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment. The preset temperature may fail to be reached 35°C (95°F) depending on the ambient temperature and media width.
*9 Roland Software Package includes: Windows driver, OnSupport software, utility software and R-Works design software
